COM43T4116VLC Ortustech 4.3 Inch TFT LCD Display 480×272 Parallel RGB Interface LCD Panel

COM43T4116VLC Overview

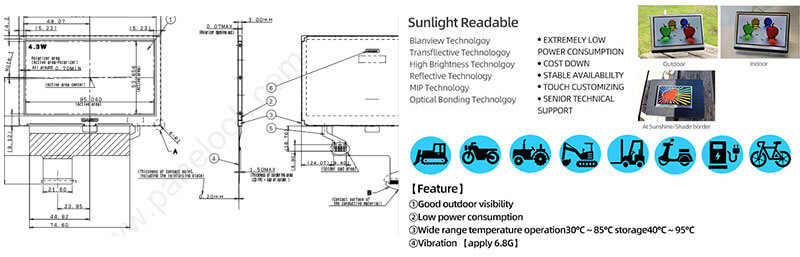

COM43T4116VLC is a 4.3 inch diagonal a-Si TFT-LCD display screen product from CASIO, with a built-in WLED backlight, without backlight driver, without touch screen.COM43T4116VLC supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.2(D) mm, with surface treament of Hard coating (3H), net weight of 40.7g. As a TN, Normally White, Transmissive LCM product, COM43T4116VLC can provides 500 cd/m² display brightness 150:1 transimissive contrast ratio, 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40/60 (Min.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 10S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COM43T4116VLC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 71 pins FPC with power supply voltage of 3.0/5.0V (Typ.)(VDD/AVDD). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.
