COM43H4P09UTC Ortustech 4.3 Inch 480×272 Transflective Sunlight Readable LCD Panel With 4-wire Resistive Touch

COM43H4P09UTC Overview

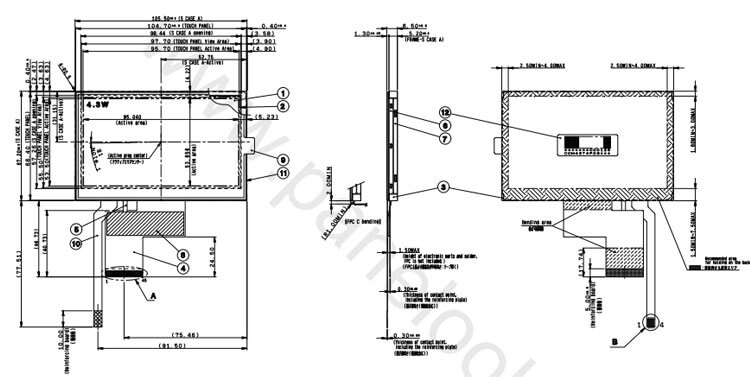

COM43H4P09UTC is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM43H4P09UTC supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×7(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 77.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM43H4P09UTC can provides 1100 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr/+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM43H4P09UTC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.0V (Typ.).

Application
For Handheld & PDA,Industrial.
