COM43H4N98UTC Ortustech 4.3 Inch TFT LCD Display 480×800 Transflective Sunlight Readable LCD Panel With Touch

COM43H4N98UTC Overview

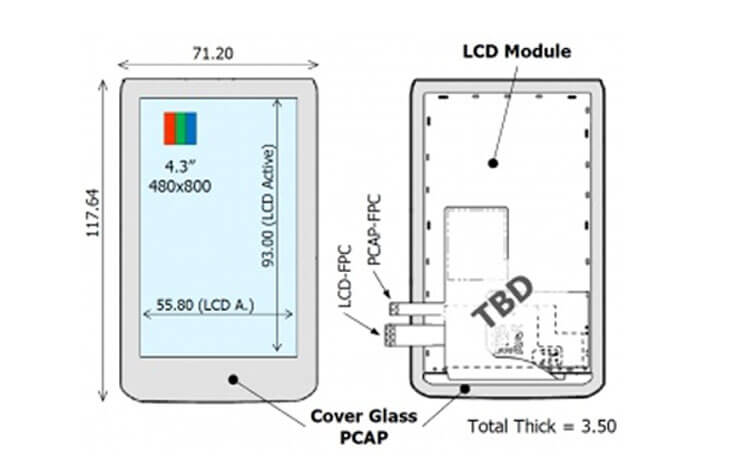

COM43H4N98UTC is a 4.3 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen PCAP. COM43H4N98UTC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 55.8(W)×93(H) mm, outline size of 71.2(W)×117.64(H) mm. As a VA, Normally Black, Transflective LCM product, COM43H4N98UTC can provides 325 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COM43H4N98UTC utilizes MIPI (2 data lanes) as it's signal inputting systerm FPC with power supply voltage of 3.3/1.8V (Typ.)(VDD/VCCIO). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.
