COM37H3N83ULC Ortustech 3.7 Inch Sunlight Readable LCD Display 480x640 Transflective Parallel RGB LCD Panel

COM37H3N83ULC Overview

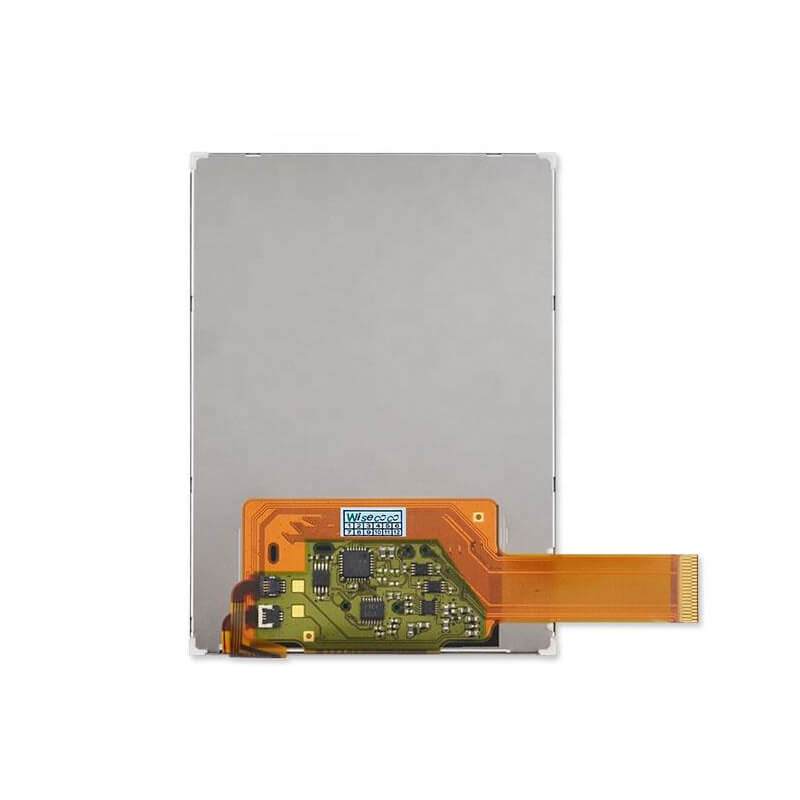

COM37H3N83ULC is a 3.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM37H3N83ULC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 56.16(W)×74.88(H) mm, outline size of 65(W)×89(H)×4.5(D) mm, viewing area size of 59.06(W)×77.78(H) mm, with surface treament of Hard coating (2H), net weight of 31.8g. As a VA, Normally Black, Transflective LCM product, COM37H3N83ULC can provides 320 cd/m² display brightness 600:1 transimissive contrast ratio, 5.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM37H3N83ULC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0/1.8V (Typ.)(VDD/VCCIO).

Application
For Handheld & PDA,Industrial.
