COM35T3112DTR Ortustech 3.5 Inch TFT LCD Display 240x320 Parallel RGB LCD Panel With 4-wire Resistive Touch

Part No.:COM35T3112DTR
Size:3.5″ inch
Resolution:240x320
Panel Interface:Parallel RGB (1 ch,8-bit)
Display mode:TN,Normally White,Transmissive
Outline Dimension:67.9(H)x84.5(V)mm

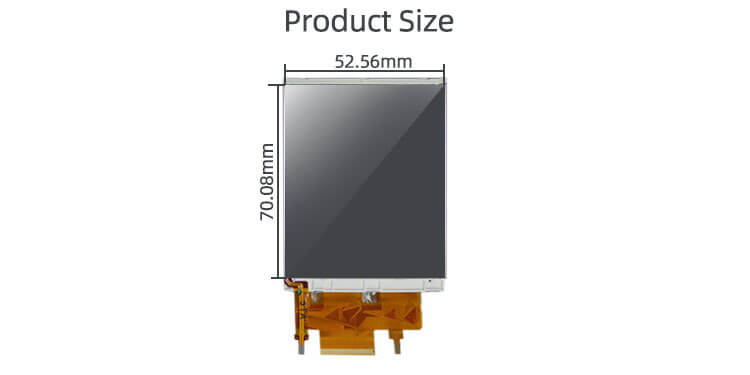

Active Area:52.56(H)x70.08(V)mm
Viewing Angle L/R/U/D:50/50/60/20 (Min.)
Brightness（cd/m2）:100(Typ.)
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

COM35T3112DTR Overview
COM35T3112DTR is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch. COM35T3112DTR supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 52.56(W)×70.08(H) mm, outline size of 67.9(W)×84.5(H)×5.4(D) mm, net weight of 57.0g. As a TN, Normally White, Transmissive LCM product, COM35T3112DTR can provides 100 cd/m² display brightness 60:1 transimissive contrast ratio, 50/50/60/20 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.

Application
For andheld & PDA,Industrial.
