COM35H3R14UTC Ortustech 3.5 Inch TFT LCD Display 480×640 Transflective LCD Panel With 4-wire Resistive Touch

COM35H3R14UTC Overview

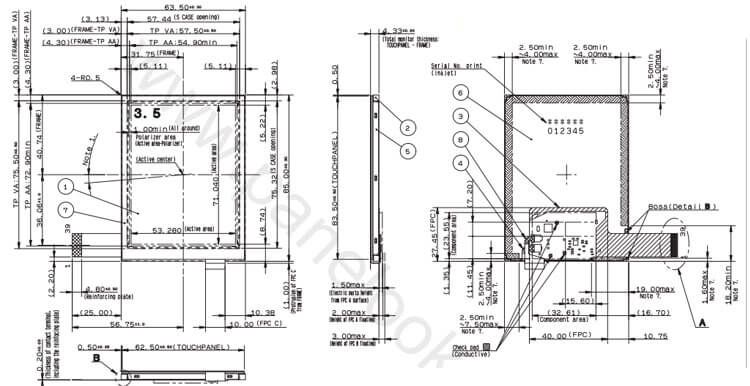

COM35H3R14UTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM35H3R14UTC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 63.5(W)×85(H)×5.83(D) mm, viewing area size of 57.5(W)×75.5(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 42.3g. As a VA, Normally Black, Transflective LCM product, COM35H3R14UTC can provides 265 cd/m² display brightness 800:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

Application
For Handheld & PDA,Industrial.
