COM35H3R12ULC Overview

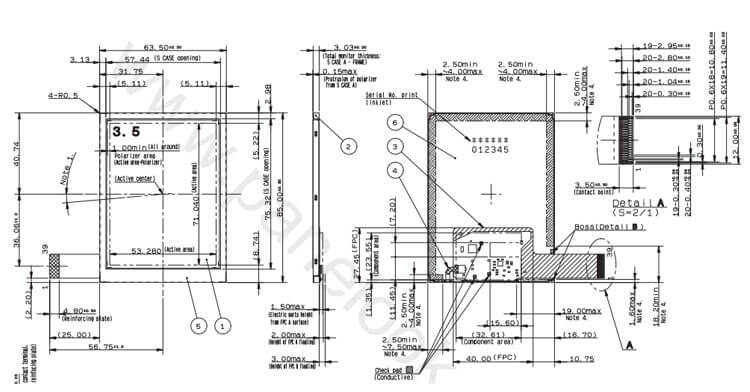

COM35H3R12ULC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 63.5(W)×85(H)×6.03(D) mm, viewing area size of 57.44(W)×75.32(H) mm, with surface treament of Hard coating (3H), net weight of 30.8g. As a VA, Normally Black, Transflective LCM product, COM35H3R12ULC can provides 330 cd/m² display brightness 800:1 transimissive contrast ratio, 2.6:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).
Application
For Handheld & PDA,Industrial.
