COM35H3R10UTC Overview

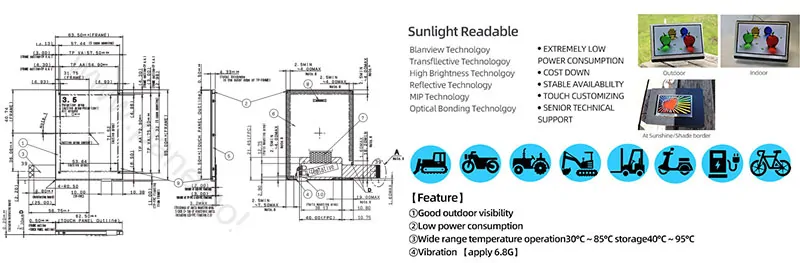

COM35H3R10UTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H) mm, viewing area size of 57.5(W)×75.5(H) mm, with surface treament of Hard coating (2H), net weight of 43.5g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3R10UTC can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).
Application
For Handheld & PDA,Industrial.
