COM35H3P03XLC Ortustech 3.5 Inch TFT LCD Display Transflective CPU Sunlight Readable LCD Panel

  • Part No.:COM35H3P03XLC
  • Size:3.5″ inch
  • Resolution:240x320
  • Panel Interface:CPU

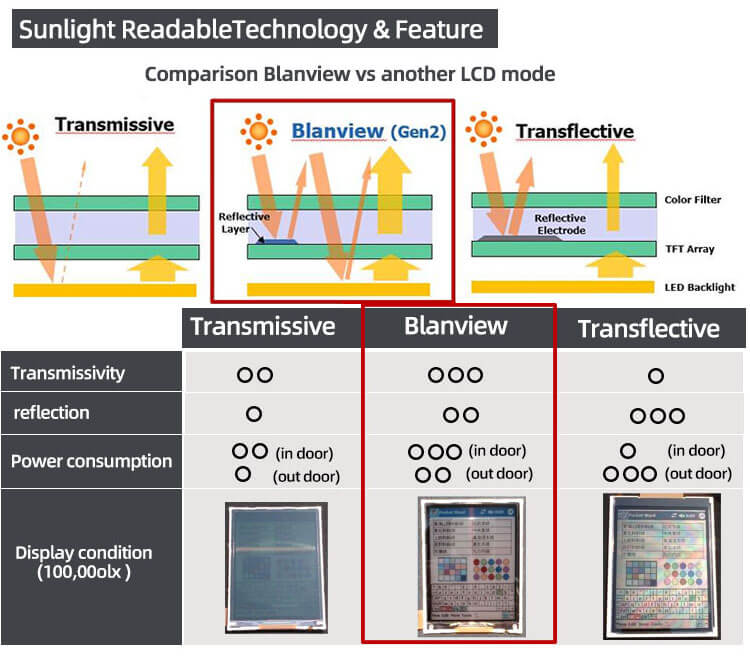

  • Display mode:TN,,Transflective

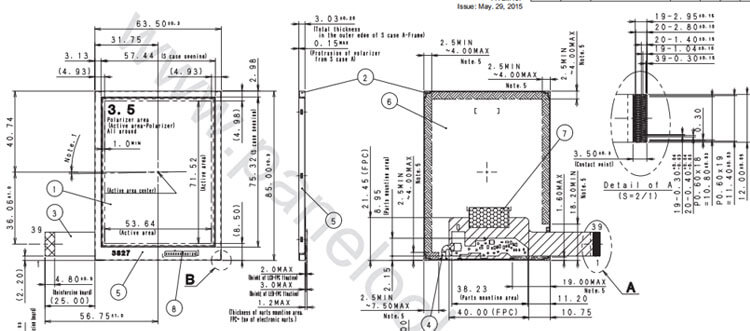

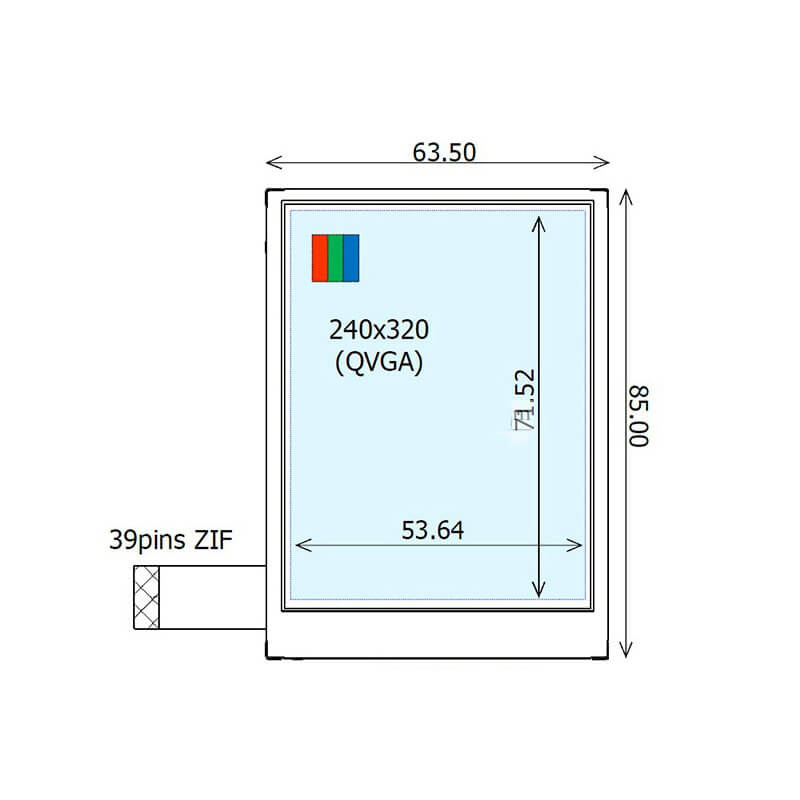

  • Outline Dimension:63.5x85mm
  • Active Area:53.64x71.52mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Min.)
  • Brightness(cd/m2):250cd/m²(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

COM35H3P03XLC Overview
COM35H3P03XLC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H)×4.23(D) mm, with surface treament of Hard coating (3H), net weight of 33.0g (Typ.). As a TN, Normally White, Transflective LCM product, COM35H3P03XLC can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 6.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.

Application
For Handheld & PDA,Industrial.
