COM27H2N76XTC Ortustech 2.7 Inch TFT LCD Display 240x320 Transflective LCD Panel For Handheld PDA

Part No.:COM27H2P40ULC
Size:2.7″ inch
Resolution:240x320
Panel Interface:CPU
Display mode:Transflective
Outline Dimension:47x66mm
Active Area:41.04x54.72mm
Viewing Angle L/R/U/D:80/80/80/80 (Min.)
Brightness（cd/m2）:350cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Overview

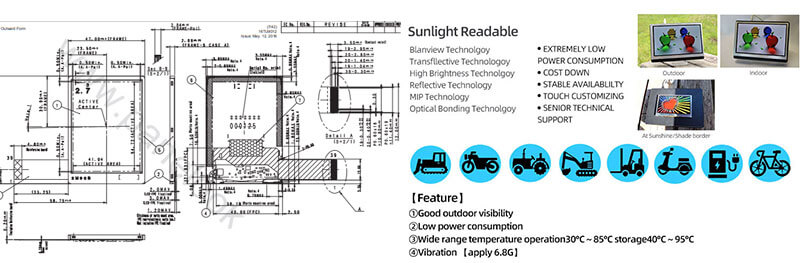

COM27H2P40ULC is a 2.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM27H2P40ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×4.34(D) mm, with surface treament of Hard coating (2H), net weight of 19.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM27H2P40ULC can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms.

Application
For andheld & PDA,Industrial.
