COM27H2N25XTC 2.7 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Screen

Overview

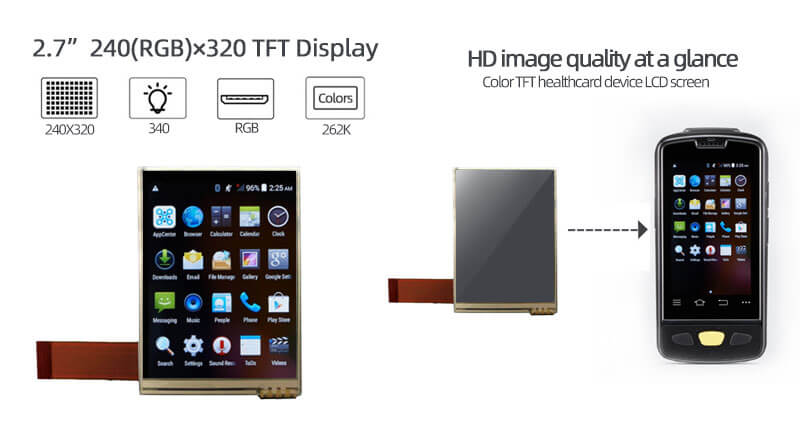

COM27H2N25XTC is a 2.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM27H2N25XTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×5.4(D) mm, viewing area size of 43.74(W)×57.42(H) mm, with surface treament of Hard coating (3H), net weight of 25.0g (Typ.). As a TN, Normally White, Transflective LCM product, COM27H2N25XTC can provides 340 cd/m² display brightness 400:1 transimissive contrast ratio, 2.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms.

Application
For andheld & PDA,Industrial.
