COM24H2P71ULC Ortustech 2.4 Inch 240x320 LCD Display Transflective Sunlight Readable LCD

Overview

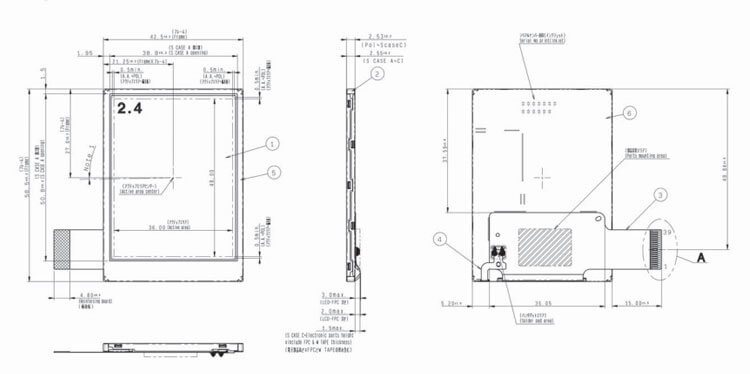

COM24H2P71ULC is a 2.4 inch diagonal a-Si TFT-LCD display screen, with a built-in WLED backlight, without backlight driver, without touch screen.COM24H2P71ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×5.55(D) mm, with surface treament of Hard coating (3H), net weight of 13.5g (Typ.). As a VA, Normally Black, Transflective LCM product, COM24H2P71ULC can provides 270 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

Application
For andheld & PDA,Industrial.
