COM24H2P28XLC Ortustech 2.4 Inch 240x320 LCD Display Transflective Sunlight Readable LCD Panel

Part No.:COM24H2P28XLC
Size:2.4″ inch
Resolution:240x320
Panel Interface:CPU
Display mode:Transflective
Outline Dimension:42.5(H)x58.5(V)mm

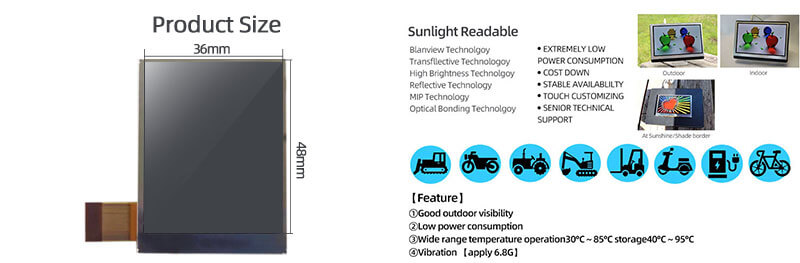

Active Area:36(H)x48(V)mm
Viewing Angle L/R/U/D:80/80/80/80 (Min.)
Brightness（cd/m2）:300(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Overview
COM24H2P28XLC is a 2.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM24H2P28XLC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×5.55(D) mm, with surface treament of Hard coating (3H), net weight of 13.6g (Typ.). As a TN, Normally White, Transflective LCM product, COM24H2P28XLC can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 8.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms.

Application
For andheld & PDA,Industrial.
