COM22H2P80ULC Ortustech 2.2 Inch LCD Panel 240x320 Transflective LCD Display For Handheld PDA

  • Part No.:COM22H2P80ULC
  • Size:2.2″ inch
  • Resolution:240x320
  • Panel Interface:CPU

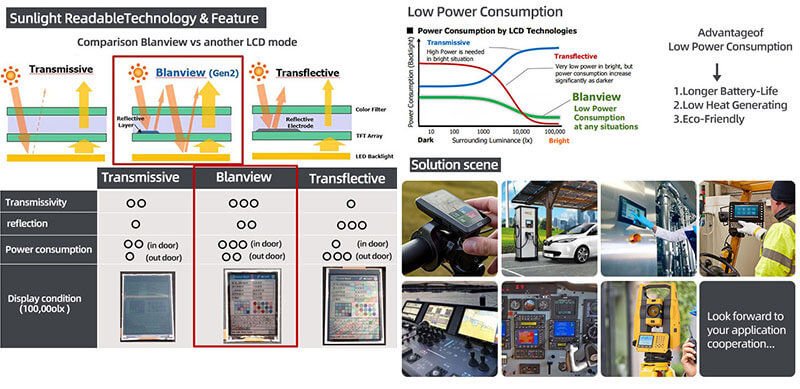

  • Display mode:Transflective
  • Outline Dimension:38.64(W)x53.72(H)mm
  • Active Area:33.84(W)x45.12(H)mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
  • Brightness(cd/m2):400cd/m²(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

Overview
COM22H2P80ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 33.84(W)×45.12(H) mm, outline size of 38.64(W)×53.72(H)×4.55(D) mm, with surface treament of Hard coating (3H), net weight of 11.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM22H2P80ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms.

Application
For andheld & PDA,Industrial.
