Best Selling 10.1 inch LCD Panel 1600x2560 High Resolution MIPI 61 Pins Interface LCD Panel IPS Display For Industrial

Part No.:G101QAN01.1
Size:10.1″ inch
Resolution:1600x2560
Panel Interface:MIPI (2 ch,4 data lanes)
Display mode:AHVA,Transmissive
Outline Dimension:142.96(W)x228.04(H)mm
Active Area:135.36(W)x216.576(H)mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400cd/m²
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

Products Description

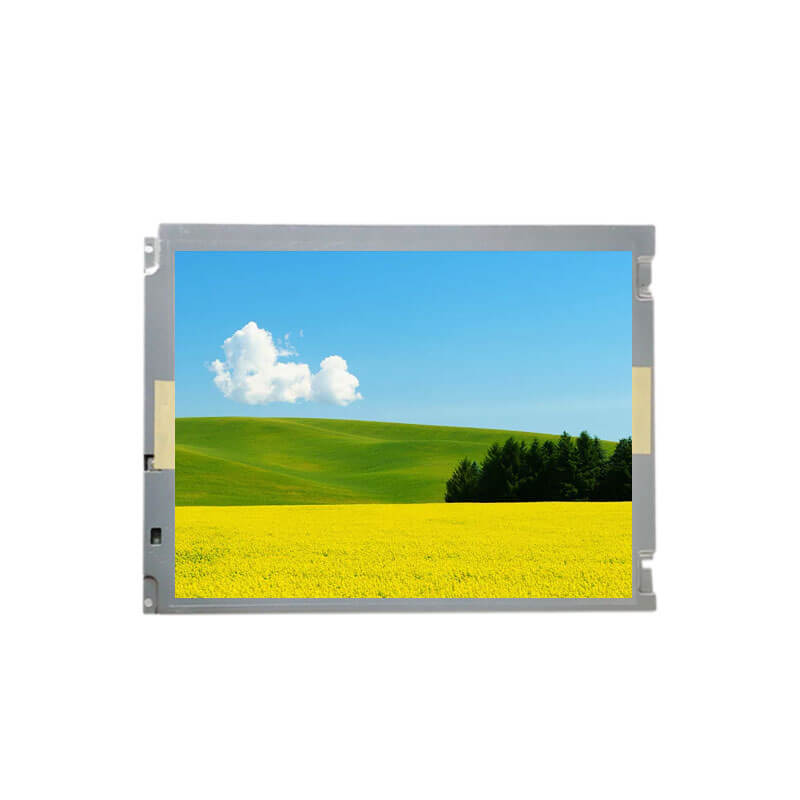

G101QAN01.1-10.1inch-1600x2560-TFT-IPS-2

Type	a-Si TFT-LCD , LCM
Panel size	10.1 inch
Active Area	135.36(W)×216.576(H) mm
Brightness	400 cd/m² (Typ.)
Interface	MIPI (2 ch, 4 data lanes)
Outline Dim	142.96(W)×228.04(H) mm
Resolution	1600(RGB)×2560
Operating Mode	IPS, Transmissive
Environment:	Operating Temp.: 0~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Contrast Ratio	1000:1 (Typ.)

G101QAN01.1_01 G101QAN01.1_02 G101QAN01.1_03
