AV123Z7M-N12-58P1 Overview

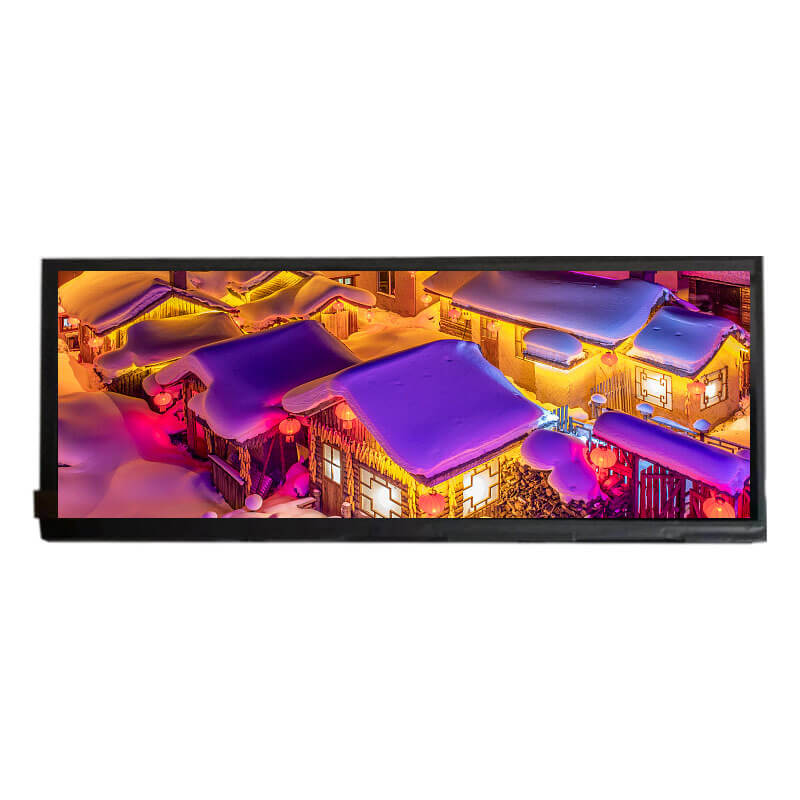

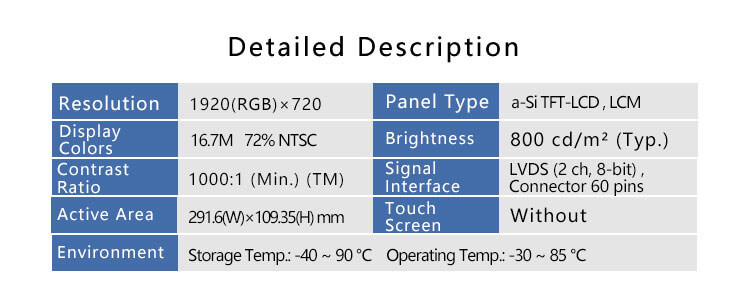

AV123Z7M-N12-58P1 is a 12.3 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, without touch screen. AV123Z7M-N12-58P1 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.032(W)×109.512(H) mm, outline size of 307(W)×126(H)×11.3(D) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive LCM product, AV123Z7M-N12-58P1 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC).
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
