AA090TB01 Overview
AA090TB01 is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.AA090TB01 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 195.84(W)×117.504(H) mm, outline size of 219(W)×136.2(H)×10(D) mm, viewing area size of 199.4(W)×120.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA090TB01 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC).
Feature
IPS
Wide Temperature

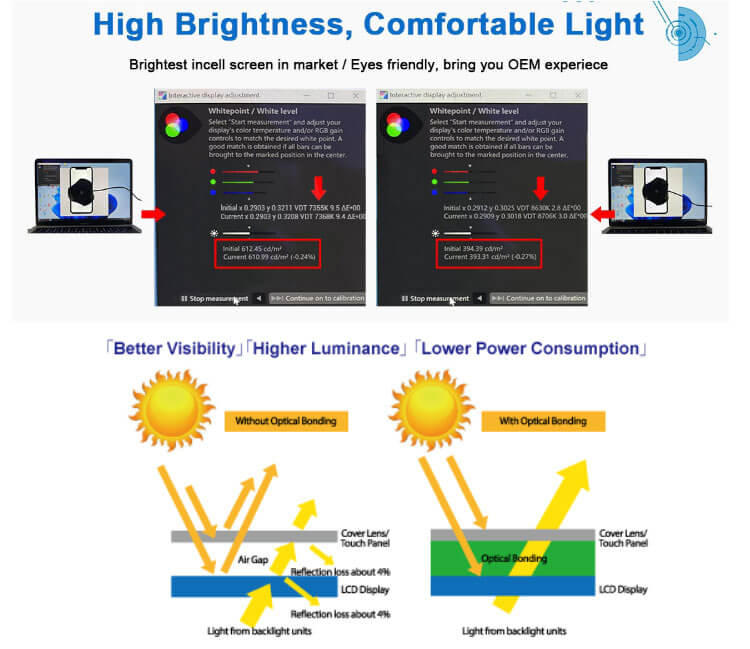

High Brightness 800cd/m2
WLED Backlight
Life ≥ 100K hours
With LED Driver
6/8 bit
Matte
Application
For Handheld & PDA,Industrial,Outdoor high brightness.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
