A035VL01 V0 AUO Original 3.5 Inch TFT LCD Display 800x480 Parallel RGB SPI LCD Panel With Touch

A035VL01 V0 Overview

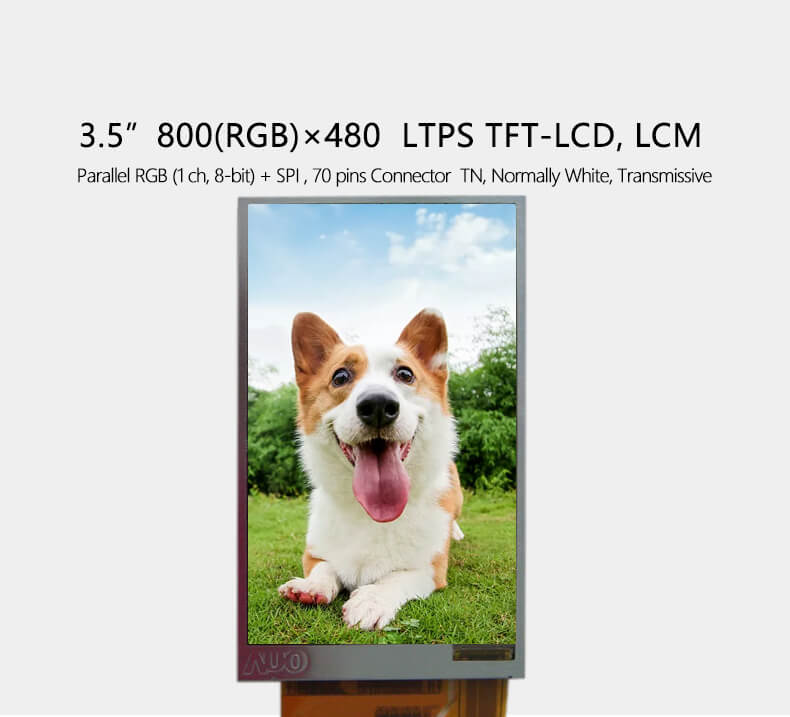

 A035VL01 V0 is a 3.5 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen On-Cell Touch. A035VL01 V0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 268 PPI. As for mechanical detail, it features active area of 75.6(W)×45.36(H) mm, outline size of 86.1(W)×51.66(H)×2.65(D) mm, viewing area size of 77.9(W)×47.76(H) mm, with surface treament of Glare (Haze 0%), net weight of 25.0±2.5g. As a AMVA, Normally Black, Transmissive LCM product, A035VL01 V0 can provides 315 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. A035VL01 V0 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 70 pins Connector with power supply voltage of 3.3/3.3V (Typ.)(VDD/VDDIO). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.
