7.1"-10.1" LCD Display (7.9")

9.7 Inch E-ink Screen 1200x825 Large Size High Resolution E-paper LCD Display

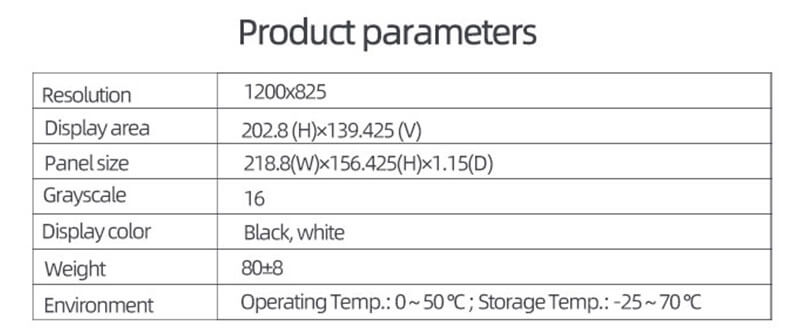

Part No.:ET097EP01
Size:7.9″ inch
Resolution:1200x825
Panel Interface:/
Display mode:Black,white
Outline Dimension:218.8x156.425x1.15mm
Active Area:202.8(H)x139.425(V)mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:/
Operation / Storage Temp:0~50℃ / -25~70℃
Touch:no

Overview
ET097EP01 is a reflective electrophoresis technology display module based on an active matrix TFT substrate.The viewing area size is 9.7 inches and the pixels are 1200×825 pixels. Depending on the display controller and related waveform files, the monitor can display images of levels 2-16 (1-4 bits)..

Feature
-Ultra-low power consumption, electronic paper can be refreshed 100W times at 0-50C
-Ultra-wide viewing angle, viewing angle >170°, visible under sunlight
-Bistable, the display screen can be maintained for a long time in case of power outage.

Screen Size:9.7 inch
Resolution:1200x825
Brand:Youritech
9.7 inch e ink display black white.

Application
For E-Readers,Digital Singage,Suppy Chain Management,Retail Labels.
