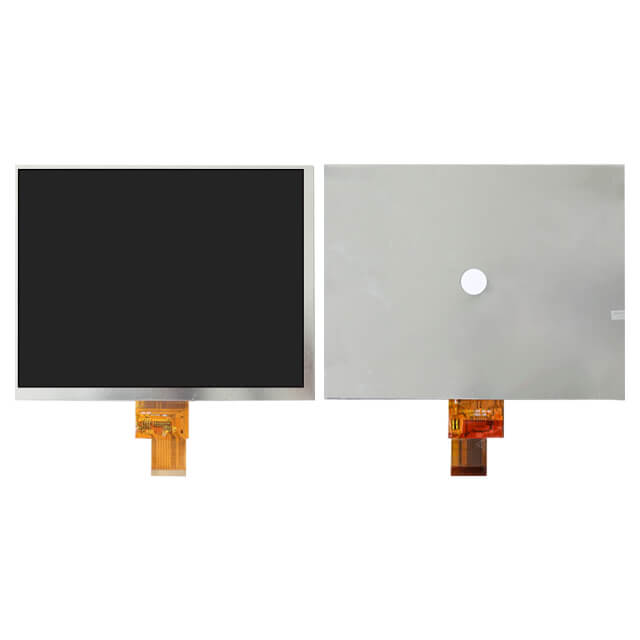

| LCD SPECIFICATION | |||
| Panel Size | 8.0 inch | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768 [XGA] | Pixel Format | RGB Vertical Stripe |
| Display Area | 162.048(H)×121.536(V) mm | Bezel Opening | 174(H)×136(V) ×2.75(D) mm |
| Outline Size | - | Surface | Hard coating |
| Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| Best View on | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR＞10) | Display Mode | IPS, Normally Black, Transmissive |
| Display Colors | 262K/16.7M 50% NTSC | Lamp Type | WLED [3S11P] , 20K hours , W/O Driver |
| Weight | 120g | Application | Pad & Tablet |
| Frequency | 60Hz | Touch Screen | Without |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins FPC | ||
| Input Voltage | 3.3/10.0/18.9/-7.8V (Typ.)(VCC/AVDD/VGH/VGL) | ||
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
| Environment | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C | ||
