7.1"-10.1" LCD Display (7.9")

7.9 Inch Screen 1536x2048 MIPI Interface Display Modules Full View LCD Panel For Automotive Display For Industrial

Part No.:ET079WQ01-V
Size:7.9″ inch
Resolution:1536x2048
Panel Interface:MIPI
Display mode:

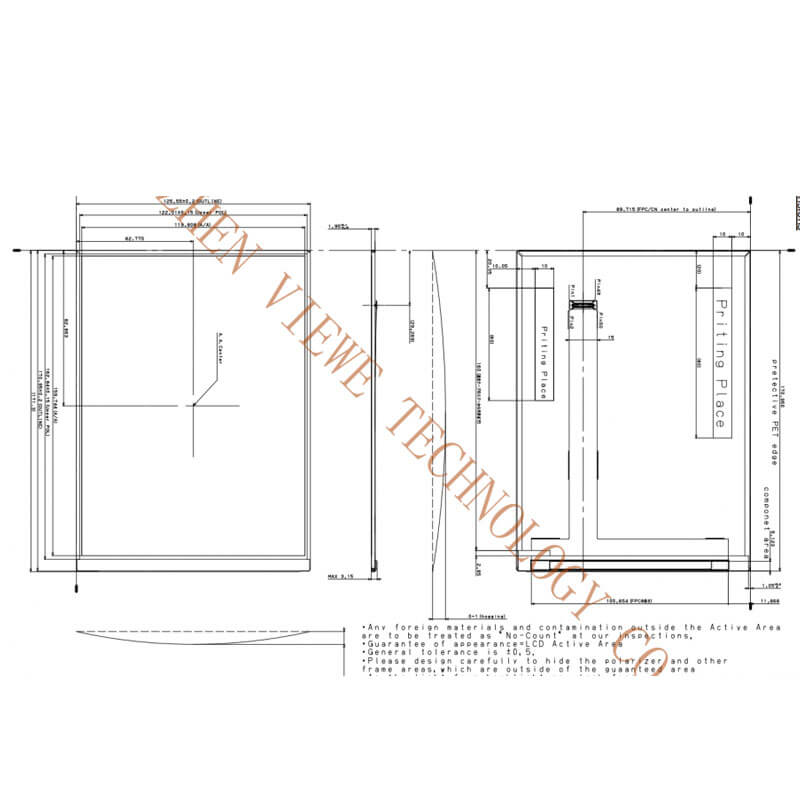

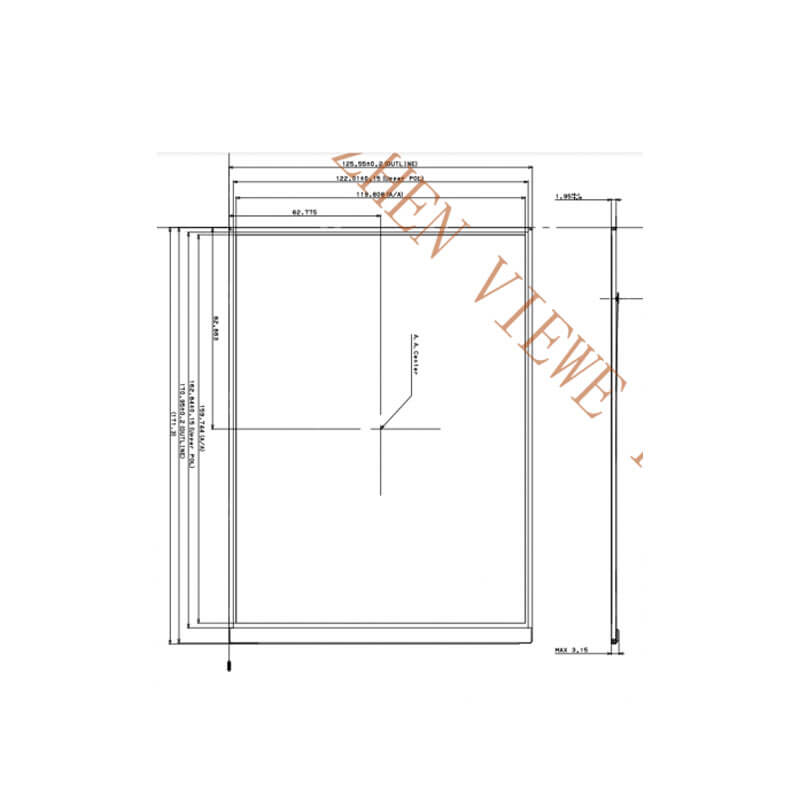

Outline Dimension:125.55(W)x170.95(H)x1.95(D)
Active Area:119.808(W)x159.744(H)
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:460
Operation / Storage Temp:-20℃~70℃ / /
Touch:no

Products Description

Resolution	1536(RGB)x2048
Module Size(mm)	125.55(W)x170.95(H)x1.95(D)
Active Area	119.808(W)x159.744(H)
Operating Temperature	-20℃~70℃)
View Direction	All 0' Clock
Interface Type	MIPI
