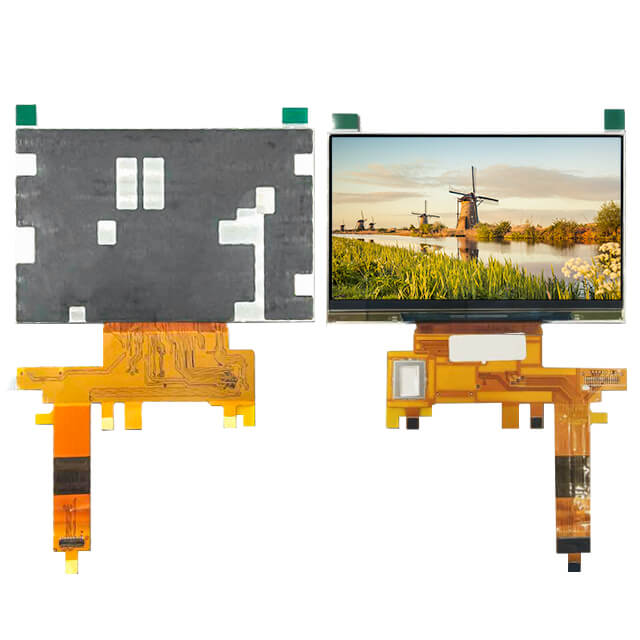

5 inch bar AMOLED 960x544 OLED IPS Display MIPI DSI 2 lane Oled for Gaming

Part No.:ET050AM01
Size:5″ inch
Resolution:960x544
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:116.54x73.92
Active Area:109.44x62.02
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:140cd/m²
Operation / Storage Temp:-20~70°C / -30~85°C
Touch:no

ET050AM01

Product size	5.0-inch	Type	OLED , AM-OLED
Pixel Format	960(RGB)×544 (qHD) 222PPI	Configuration	RGB Vertical Stripe
Active Area	109.44 × 62.02 (H×V)	Outline Dim.	116.54 × 73.92 (H×V×D)
Luminance	140 cd/m² (Typ.)	Contrast Ratio	6500 : 1 (Typ.) (TM)
View Direction	Symmetry	Response Time	1.0 (Max.) ms
Viewing Angle	80/80/80/80 (Typ.)(CR≥200)	Operating Mode	-
Support Color	16.7M 98% NTSC	Light Source	self
Weight	-	Designed For	Gaming
Frequency	60Hz	Touch Panel	Without
Driver IC list	Built-in D53E6EA8933
Interface Type	MIPI (2 data lanes) , 40 pins Connector
Power Supply	1.8/3.0/V (Typ.)(VDD/VCI/ELVDD/ELVSS)
Environment	Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C
