5.84 Inch Black White And Red E-ink Screen Long Strip E-paper Screen

Part No.:ET058EP02
Size:5.84″ inch
Resolution:768x256
Panel Interface:SPI
Display mode:black white red
Outline Dimension:147.6x59.58x1.20mm
Active Area:140.7x46.9mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:/
Operation / Storage Temp:0-40°C / -25-40°C
Touch:no

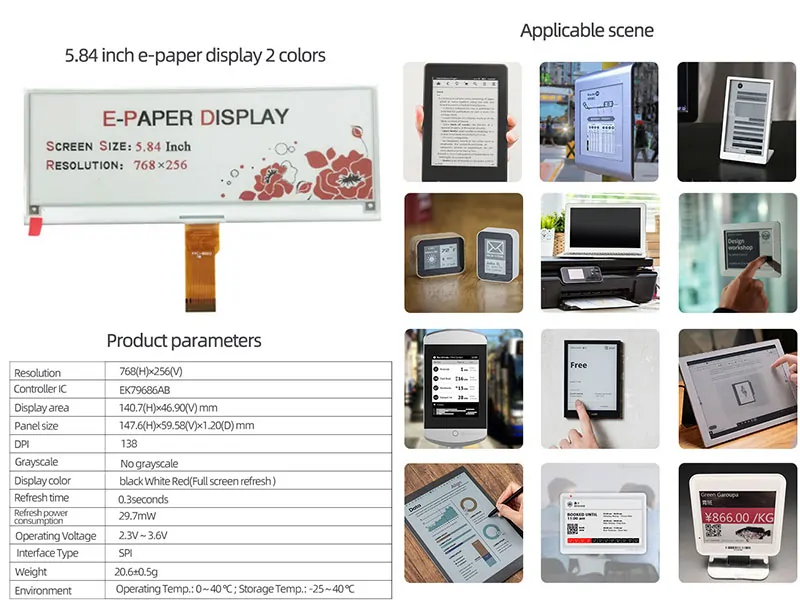

Overview
5.84 Inch Black White And Red E-ink Screen Long Strip E-paper Screen.
Screen Size:5.84 inch
Resolution:768x256
Brand:Youritech
5.84 Inch Black White And Red E-ink Screen.

Feature
-Built-in driver IC
-Ultra-wide viewing angle nearly 180°
-Ultra-low power consumption (only consumes power when refreshing)
-Pure reflection mode
-Anti-glare hard coat front surface.
-Low current deep sleep mode
-Using COG package, IC thickness 300um
-Service life (number of refreshes without failure): more than 1 million times

Application
For E-Readers,Digital Singage,Suppy Chain Management,Retail Labels.

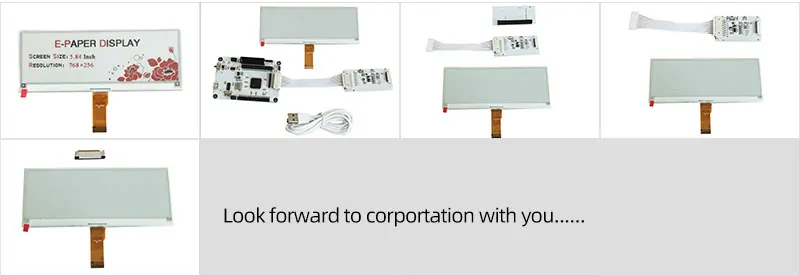

More SKU To Choose
-ET058EP02 5.84 inch e-paper display 3 colors
-ET058EP02 display + demo
-ET058EP02 dispaly + raspberry adapter board + connector
-ET058EP02 display + with raspberry adapter board no connector
-ET058EP02 display + connector
