5.1"-7" LCD Display (5.8")

5.79 Inch Electronic Ink Display EPD 272x792 High Resolution Electronic Paper Screen

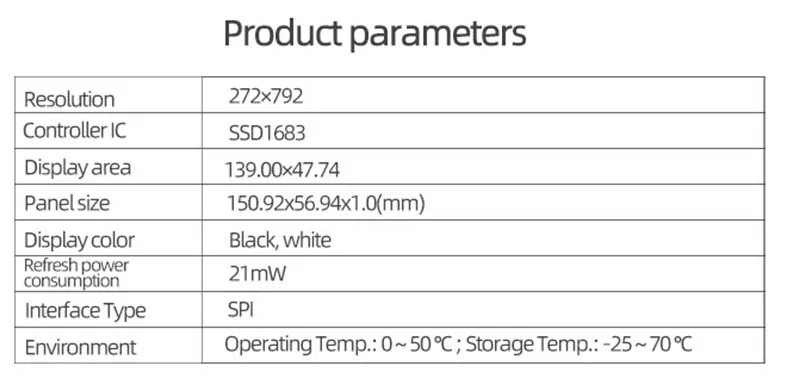

Part No.:ET058EP06
Size:5.8″ inch
Resolution:272x792
Panel Interface:SPI
Display mode:Black,white
Outline Dimension:150.92x56.94x1.0mm
Active Area:139.00x47.74mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:/
Operation / Storage Temp:0~50℃ / -25~70℃
Touch:no

Overview
This is a 5.79-inch black and white e-ink screen with a resolution of 272x792, 24-pin FPC connection, optional FPC connector, communication via SPI interface, with an embedded controller (COG package) and on-chip stored waveforms. Given Many advantages: ultra-low power consumption, wide viewing angle, an excellent choice for applications such as shelf labels, smart home applications, industrial instruments, electronic conference table cards and other related products.

Feature
-High resolution
-Ultra-low power consumption, no refresh and no power consumption
-SPI interface, 24pin
-I2C signal interface for reading external temperature sensors.
-Wide viewing angle

Screen Size:5.79 inch
Resolution:272x792
Brand:Youritech

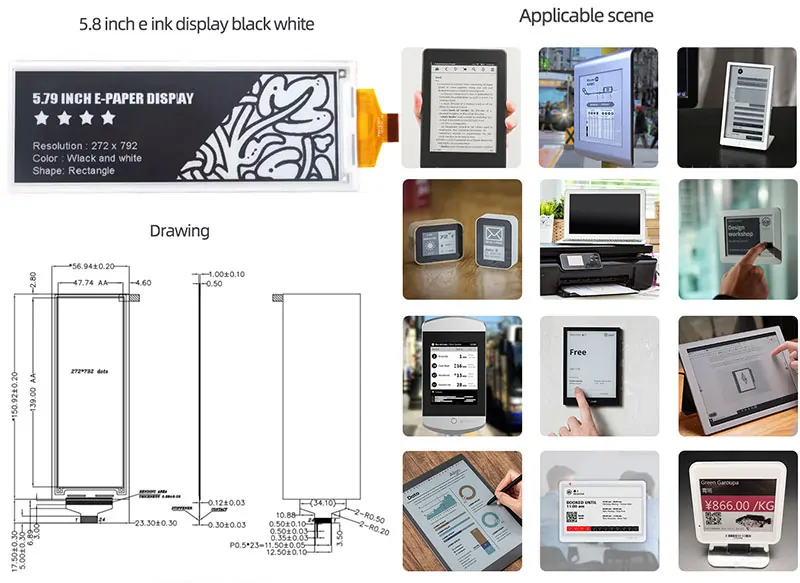

5.8 inch e ink display black white.

Application
For E-Readers,Digital Singage,Suppy Chain Management,Retail Labels.
