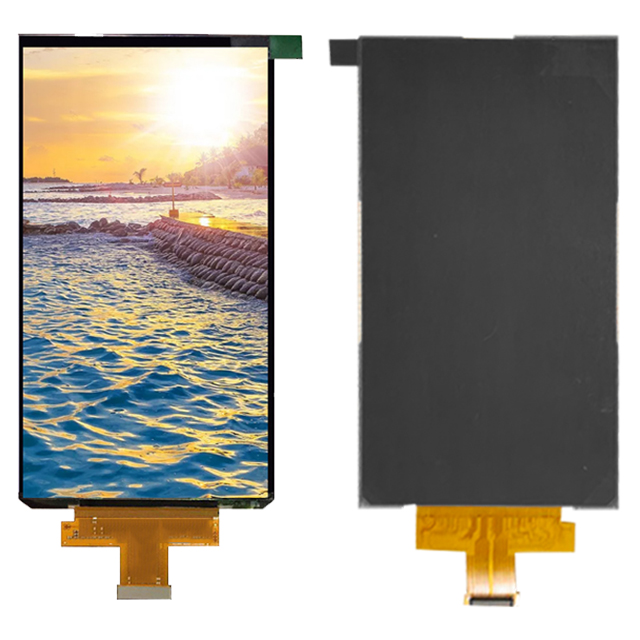

ET057AM01
| Product size | 5.7-inch | Type | AM-OLED, OLED |
| Pixel Format | 1440(RG/BG)×2560 [Quad-HD] 518PPI | Configuration | RG/BG PenTile |
| Active Area | 70.56(H)×125.44(V) mm | Outline Dim. | 73.2(H)×132.76(V) mm |
| Bezel Area | - | Treatment | Hard coating |
| Luminance | 120 cd/m² (Typ.) | Contrast Ratio | - |
| View Direction | Symmetry | Response Time | - |
| Viewing Angle | - | Operating Mode | - |
| Support Color | 16.7M 103% NTSC | Light Source | self |
| Weight | - | Designed For | Mobile Phone HMD VR AR |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | MIPI (2 ch, 4 data lanes) Connector | ||
| Power Supply | 1.8/3.3/3.8V (Typ.)(VDD3/VCI/VBAT) | ||
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
