5.1"-7" LCD Display (5.5")

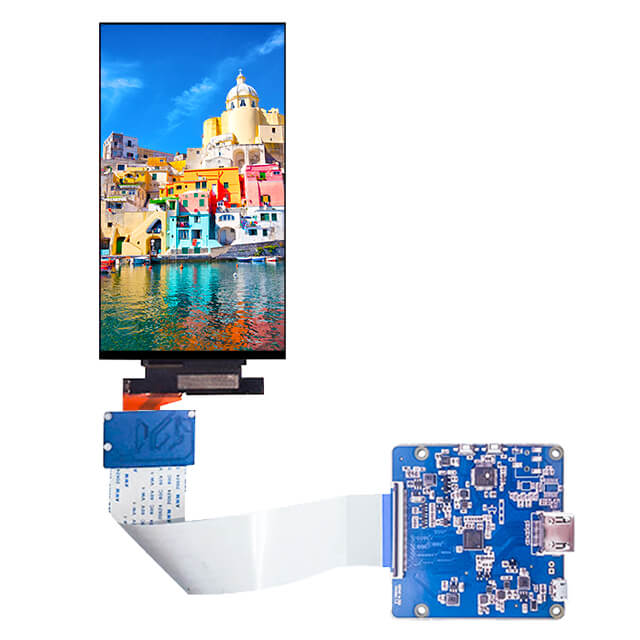

5.5inch 4k lcd 3D printer application 2160x3840 resolution screen mipi interface wide temperature display

  • Part No.:ET546UAN01.0
  • Size:5.5″ inch
  • Resolution:2160x3840
  • Panel Interface:MIPT
  • Display mode:IPS
  • Outline Dimension:68.04(H)x120.96(V)
  • Active Area:68.64(H)x121.56(V)
  • Viewing Angle L/R/U/D:70/70/70/70
  • Brightness（cd/m2）:500cd/m²
  • Operation / Storage Temp:-40~85°C / -55~125°C
  • Touch:no
Get a quote
Panel Size 5.5 inch Panel Type LCM ,   LTPS TFT-LCD
Resolution 2160(RG/BR/GB)×3840   (UHD) Pixel Format Rainbow-RGB
Display Area 68.04 × 120.96 (H×V) Bezel Area

 68.64 × 121.56 (H×V)
Outline Size 69.84 × 128.86 × 1.38 (H×V×D) Surface Antiglare, Hard coating (3H)
Brightness 500 (Typ.)(cd/m²) Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 70/70/70/70 (Typ.)(CR≥100) Display Mode AHVA, Normally Black, Transmissive
View Direction Symmetry Response Time /
Display Colors 16.7M   94% (CIE1931) Lamp Type 6S3P WLED , No Driver
Frequency / Touch Screen without
