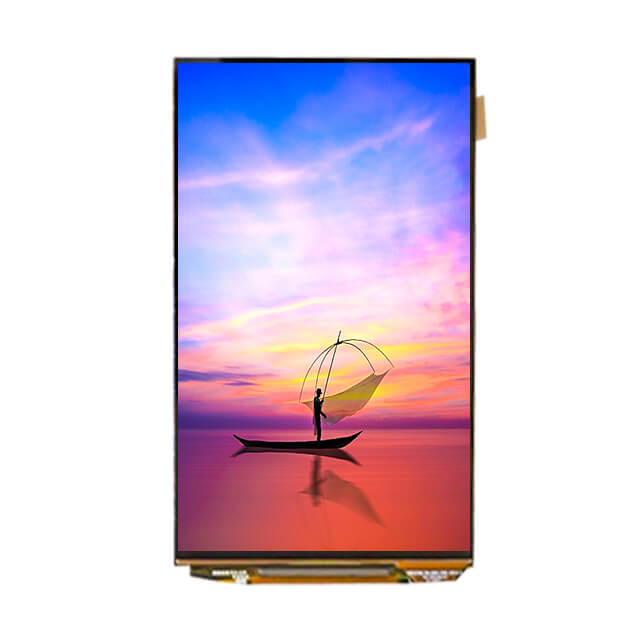

ET055AM05
| Product size | 5.5-inch | Type | AM-OLED, OLED |
| Pixel Format | 1080(RG/BG)×1920 [FHD] 327PPI | Configuration | Sub-Pixel Rendering |
| Active Area | 68.31(H)×121.44(V) mm | Outline Dim. | 70.71(H)×128.44(V) mm |
| Bezel Area | - | Treatment | Hard coating |
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 17000:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | - |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | - |
| Support Color | 16.7M 101% NTSC | Light Source | self |
| Weight | TBD | Designed For | Mobile Phone |
| Frequency | 60Hz | Touch Panel | On-Cell Touch |
| D-IC Detail | COG Built-in WD5EA5F01 + GT1151 | ||
| Interface Type | MIPI (4 data lanes) , 40 pins Connector | ||
| Power Supply | 1.8/3.0/4.6/7.6/-5.0V (Typ.)(VDDIO/VCI/ELVDD/AVDD/ELVSS) | ||
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C | ||
