4" inch 480*800 IPS LCD module with MIPI 2 Lanes interface featured for handheld device and medical device

Part No.:ET040WV02-V
Size:4″ inch
Resolution:480x800
Panel Interface:
Display mode:IPS

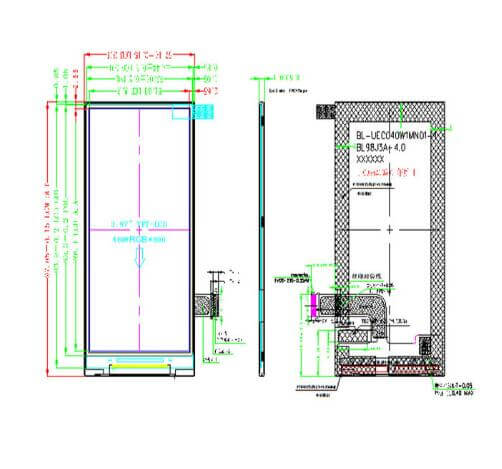

Outline Dimension:57.14(H)x96.85(V)x2.1(T)
Active Area:51.84(H)x86.4(V)
Viewing Angle L/R/U/D:80 80 80 80
Brightness（cd/m2）:370cd/m2
Operation / Storage Temp:-20~70℃ / -30~80℃
Touch:no

Feature		Spec
Display Spec.	Size	4.0 inch
	Resolution	480(RGB)*800
	Technology Type	a-Si
	Pixel Configuration	RGB Vertical Stripe
	Display Mode	IPS
	Viewing Direction	Free angle
Mechanical Characteristics	LCM (W x H x D) (mm)	57.14(H)96.85(V)2.1(T)
	Active Area(mm)	51.84(H)*86.4(V)
	With /Without TSP	Without TSP
	Driver IC	JD9161
	Weight (g)	TBD
Electrical Characteristics	Interface	MIPI 2 Lanes interface
Electrical Characteristics	Color Depth	262K
