3.8 inch 480*800 TFT ips color lcd screen 3.8 inch portrait tft lcd display 470nits MIPI 30pins

  • Part No.:LS038Y3LX01
  • Size:3.8″ inch
  • Resolution:480x800
  • Panel Interface:MDDI (1 data lane)
  • Display mode:Transflective

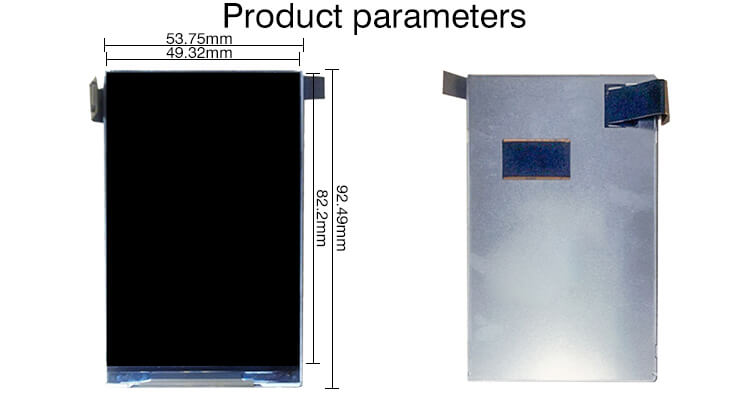

  • Outline Dimension:53.75(H)x92.49(V)
  • Active Area:49.32(H)x82.2(V)
  • Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
  • Brightness（cd/m2）:470(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no
Get a quote

Product Description

Product size 3.8-inch Type LCM,   CG-Silicon
Pixel Format 480(RGB)×800   (WVGA)  247PPI Configuration RGB Vertical Stripe
Active Area 49.32 × 82.2 (H×V) Outline Dim. 53.75 × 92.49 (H×V×D)
Bezel Area 50.32 × 83.2 (H×V) Treatment -
Luminance 470 cd/m² (Typ.) Contrast Ratio 650 : 1 (Typ.) (TM)
View Direction Symmetry Response Time 11/24 (Typ.)(Tr/Td) ms
Viewing Angle 80/80/80/80 (Typ.)(CR≥5) Operating Mode Normally Black, Transflective
Support Color 16.7M   90% NTSC Light Source 1S7P WLED , No Driver
Weight 24.0g (Typ.) Designed For Mobile Phone
Frequency 60Hz Touch Panel Without
Interface Type MDDI (1 data lane) , Connector 30 pins
Power Supply 1.8/3.0V (Typ.)(VDDIO/VCC)
Environment Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
