[email protected]

:

0.48"-5" LCD Display (3.2")

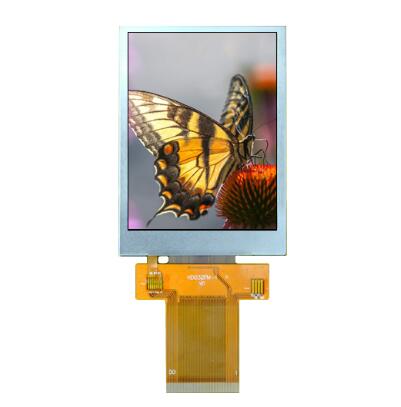

3.2" 240x320 resolution full viewing angle LCD display ET032QV01-K with IC ST7789V with MCU/RGB interface

Part No.:ET032QV01-K
Size:3.2″ inch
Resolution:240x320
Panel Interface:
Display mode:IPS
Outline Dimension:57.04x78.95x3.0
Active Area:48.60(Ｈ)x64.80(Ｖ)
Viewing Angle L/R/U/D:80 80 80 80
Brightness（cd/m2）:530cd/m2
Operation / Storage Temp:-20～+70℃ / -30～+80℃
Touch:no

Model No.:	ET032QV01-K	Brightness:	530cd/m2
Brand:	Youritech	Interface:	8/9/16/18Bit MCU 3/4SPI+16/18Bit RGB 3-line/4-line
Panel Size:	3.2"	Viewing Angle:	80 80 80 80
Pixel:	240*320	Display Mode:	IPS
Active Area:	48.60(H)*64.80(V)	Storage Temperature:	-30~+80℃
Contrast Ratio:	700:1	Operation Temperature:	-20~+70℃
