0.48"-5" LCD Display (2.4")

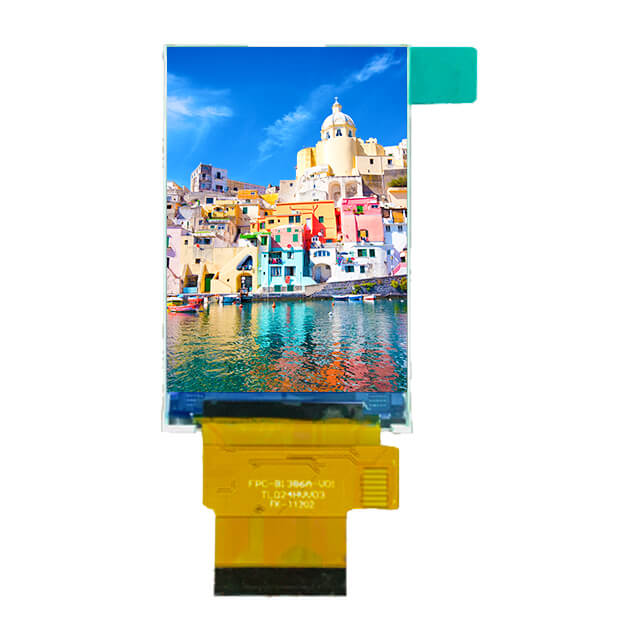

2.4 inch IPS TFT with 320x480 3SPI+RGB connection ST7701S IC For LCD Display

  • Part No.:ET024HVV03-G
  • Size:2.4″ inch
  • Resolution:320x480
  • Panel Interface:3SPI+18RGB
  • Display mode:Normally Black
  • Outline Dimension:38.9x61.3x2.1
  • Active Area:32.8x49.68
  • Viewing Angle L/R/U/D:ALL
  • Brightness（cd/m2）:
  • Operation / Storage Temp: /
  • Touch:no
Get a quote

ET024HVV03-G



Parameter
Specification
Panel Model
ET024HVV03-G
Panel Size
2.4 inch
Resolution (H*V)
320(RGB)*480
Technology Type
a-Si TFT
Pixel Configuration
R.G.B.Vertical Stripe
Display Mode
Normally Black
Viewing Direction
ALL
OutlineDimensions (W xHx T) (mm)
38.9*61.3*2.1
Active Area(mm)
32.8*49.68
With Without Touch screen
Without
Connector Type
0.5PITCH 40PIN
Backlight Type
LED
Weight(g)
TBD
Display Interface
3SPI+18RGB
Number of color
262K
Display Driver lC
ST7701s
