19 inch LCD Display Module 1280x1024 Resolution LCD Panel LVDS 30 Pins Interface Outdoor High Brightness IPS Screen

  • Part No.:LQ190E1LX78
  • Size:19″ inch
  • Resolution:1280x1024
  • Panel Interface:LVDS (2 ch,8-bit)
  • Display mode:ASV,Transmissive
  • Outline Dimension:398.1x329.5mm
  • Active Area:376.32x301.056mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness（cd/m2）:1200cd/m²(Typ.)
  • Operation / Storage Temp:-20~65°C / -25~70°C
  • Touch:no
Get a quote

Products Description

LQ190E1LX78-TFT-19inch-1280x1024-LVDS-1

LCD SPECIFICATION
Panel Size 19.0" Panel Type a-Si TFT-LCD, LCM
Pixel Number 1280(RGB)×1024, SXGA Configuration RGB Vertical Stripe
Active Area(mm) 376.32×301.056 mm Outline(mm) 398.1×329.5 mm
Bezel Area(mm) 380.65×306.5 mm Treatment Antiglare (Haze 3%), Hard coating (3H)
Luminance 1200 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.) Display Mode ASV, Normally Black, Transmissive
Signal Interface LVDS (2 ch, 8-bit)
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -25 ~ 70 °C

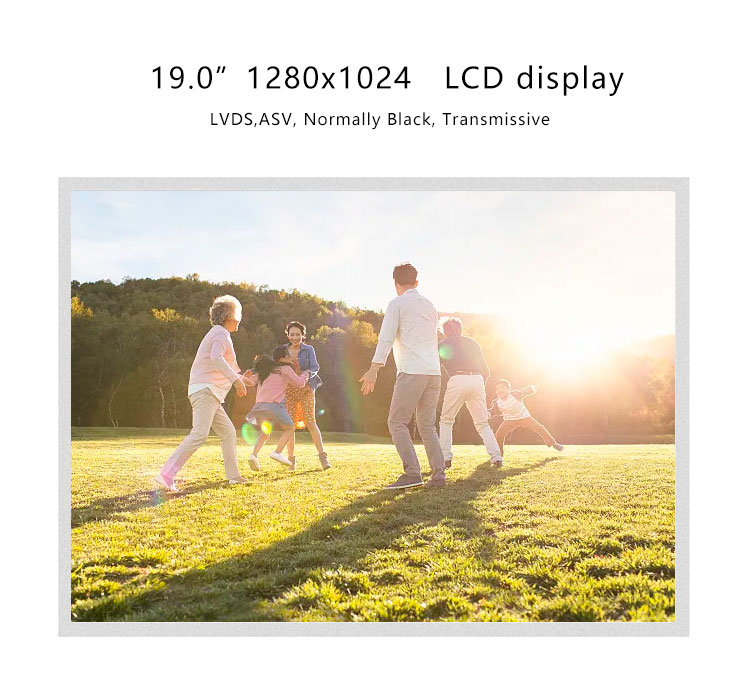

LQ190E1LX78_01 LQ190E1LX78_02 LQ190E1LX78_03
