(3")

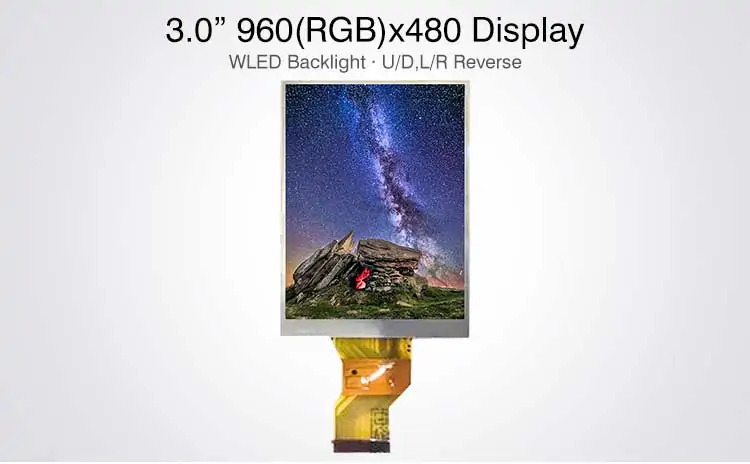

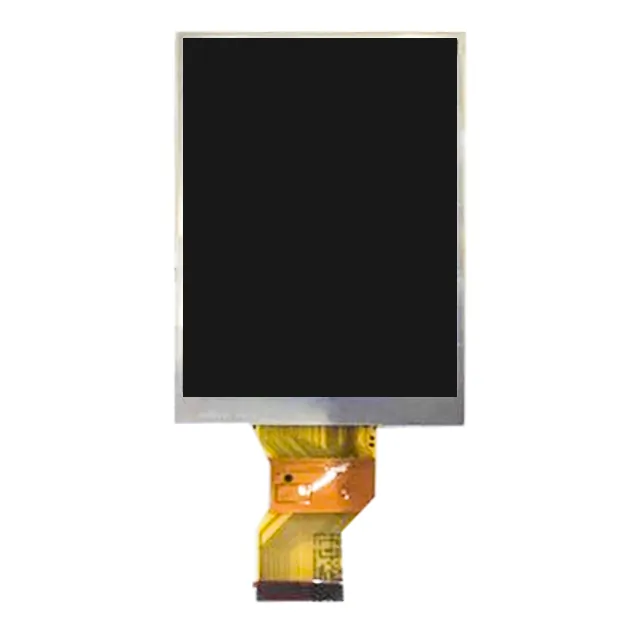

100% Original 3 inch 960*480 tft color lcd screen 3 inch landscape lcd display 51Pins

Part No.:EJ030NA-01B
Size:3″ inch
Resolution:960x480
Panel Interface:YUV (16-bit),51 pins FPC
Display mode:TN,Transmissive

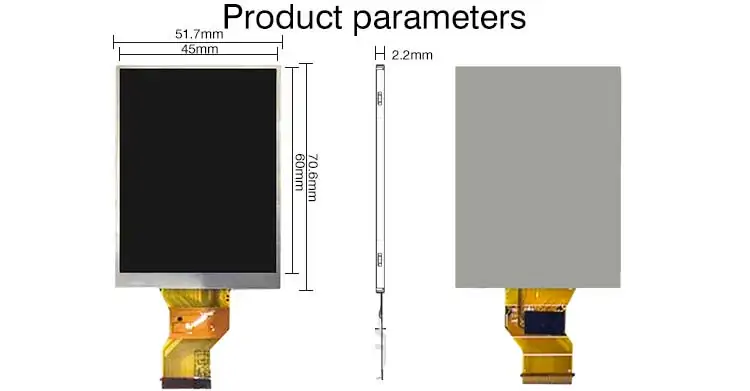

Outline Dimension:70.6x51.7x2.2(HxVxD)
Active Area:60x45(HxV)
Viewing Angle L/R/U/D:60/60/50/55 (Typ.)
Brightness（cd/m2）:500cd/m²(Typ.)
Operation / Storage Temp:0~60°C / -30~80°C
Touch:no

Product Description

Product size	3.0-inch	Type	LCM, a-Si TFT-LCD
Pixel Format	960×480 195PPI	Configuration	RGB Delta
Active Area	60 × 45 (H×V)	Outline Dim.	70.6 × 51.7 × 2.2 (H×V×D)
Bezel Area	63.13 × 48.1 (H×V)	Treatment	Hard coating
Luminance	500 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (TM)
View Direction	-	Response Time	35 (Typ.)(Tr+Td) ms
Viewing Angle	60/60/50/55 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M	Light Source	5S1P WLED , No Driver
Weight	16.0g	Designed For	Digital Still Camera Digital Video Camera
Frequency	-	Touch Panel	Without
Interface Type	YUV (16-bit) , 51 pins FPC
Power Supply	1.8/3.3V (Typ.)(VDD/VDDIO)
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: 0 ~ 60 °C
