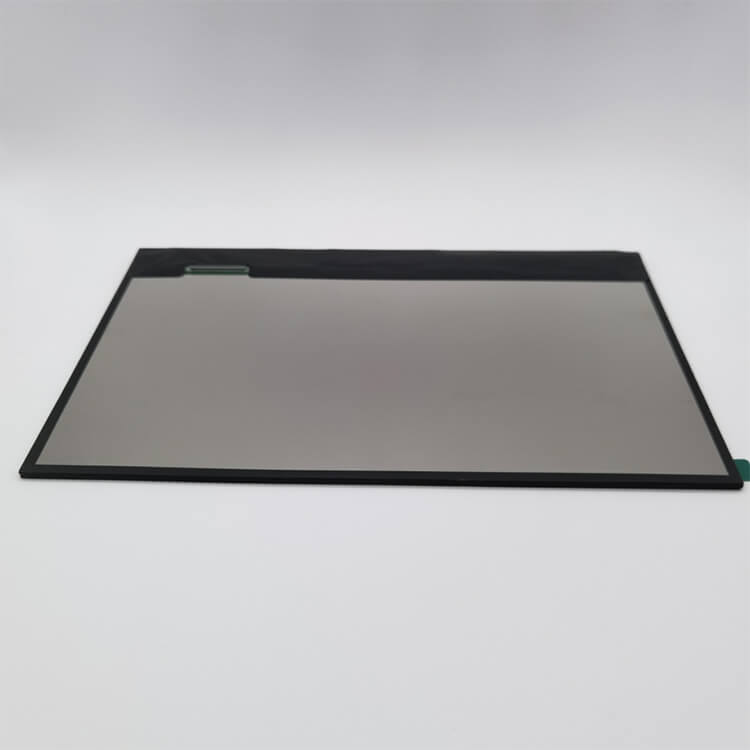

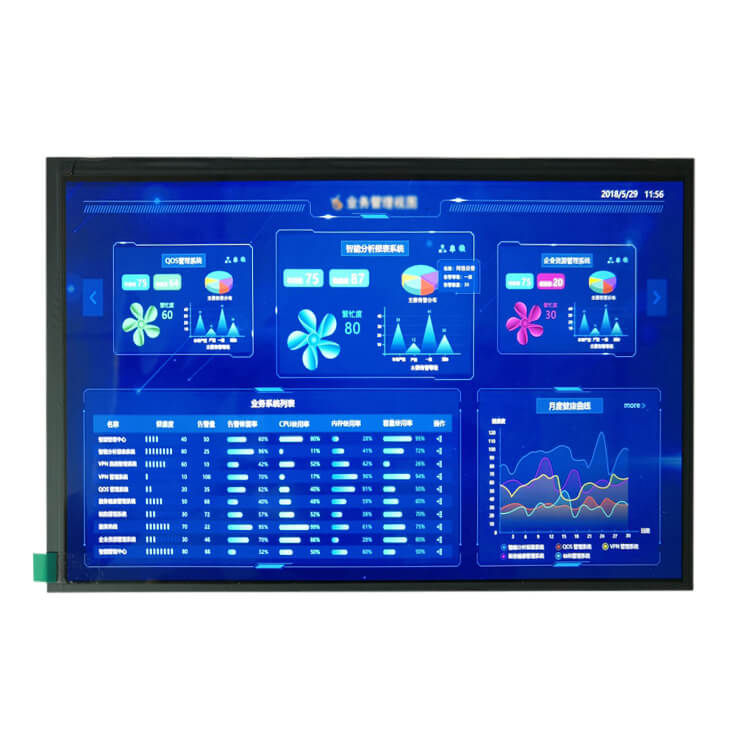

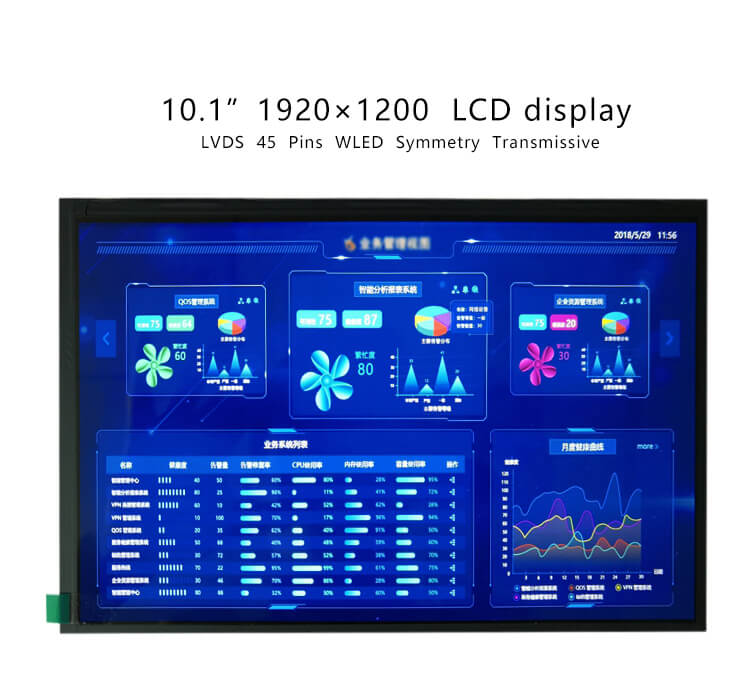

10.1 inch 1920x1200 TFT LCD Screen LVDS 8 BIT Interface Industrial Highlight LCD Display

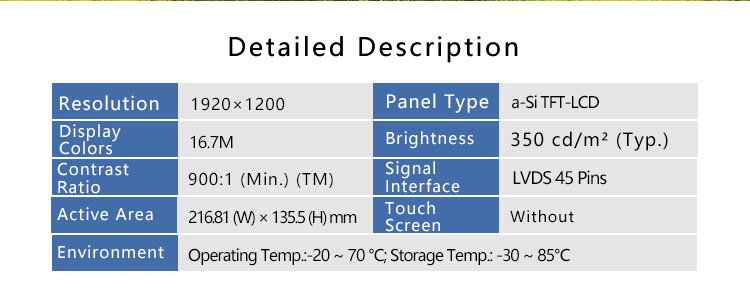

Part No.:ET101WU01-T
Size:10.1″ inch
Resolution:1920x1200
Panel Interface:LVDS 8 BIT Interface
Display mode:Normally Black
Outline Dimension:229.45x149.22x2.63mm
Active Area:216.81(H)x135.5(V)mm
Viewing Angle L/R/U/D:ALL O’CLOCK
Brightness（cd/m2）:350cd/㎡
Operation / Storage Temp:-20+70℃ / -30+80℃
Touch:no

10.1 inch 1920x1200 TFT LCD Screen
