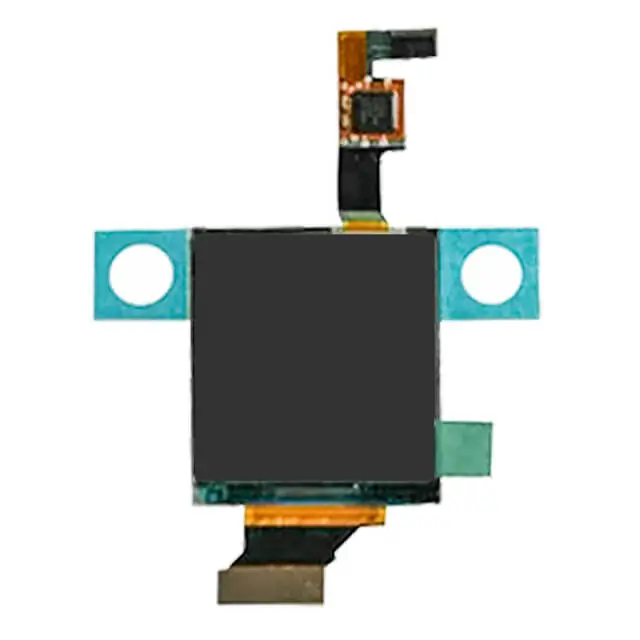

ET130BLK01.0
|
Product size
|
1.3-inch
|
Type
|
AM-OLED, OLED
|
||
|
Pixel Format
|
240(RGB)×240 261PPI
|
Configuration
|
RGB Vertical Stripe
|
||
|
Active Area
|
23.28(H)×23.28(V) mm
|
Outline Dim.
|
25.68(H)×29.84(V) ×1.32(D) mm
|
||
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
50000:1 (Min.) (TM)
|
||
|
View Direction
|
Symmetry
|
Response Time
|
-
|
||
|
Viewing Angle
|
80/80/80/80 (Min.)(CR≥10)
|
Operating Mode
|
-
|
||
|
Support Color
|
16.7M 101% NTSC
|
Light Source
|
self
|
||
|
Weight
|
-
|
Designed For
|
Wearable Round Display
|
||
|
Frequency
|
-
|
Touch Panel
|
On-Cell Touch
|
||
|
D-IC Detail
|
COG Built-in W040
|
||||
|
Interface Type
|
SPI , 45 pins FPC
|
||||
|
Power Supply
|
1.8/3.3/3.3/-3.3V (Typ.)(VDDIO/VCI/ELVDD/ELVSS)
|
||||
|
Environment
|
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
|
||||
