0.48"-5" LCD Display (1.3")

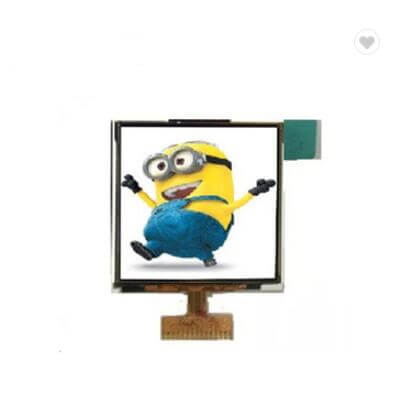

1.3" square SPI ET013QV01-L IPS lcd module 240x240 resolution wearable device lcd display IC ST7789H2

Part No.:ET013QV01-L
Size:1.3″ inch
Resolution:240x240
Panel Interface:
Display mode:IPS
Outline Dimension:29.15x26x1.5
Active Area:23.4x23.4
Viewing Angle L/R/U/D:80 80 80 80
Brightness（cd/m2）:300cd/m2
Operation / Storage Temp:-20/70°C / -30/80°C
Touch:no

Model No.:	ET013QV01-L	Brightness:	300
Brand:	Youritech	Interface:	SPI
Panel Size:	1.3"	Viewing Angle:	80 80 80 80
Pixel:	240*240	Display Mode:	IPS
Active Area:	23.4*23.4	Storage Temperature:	-30~+80℃
Contrast Ratio:	800:1	Operation Temperature:	-20~+70℃

ET013QV01-L YOURITECH.jpg
