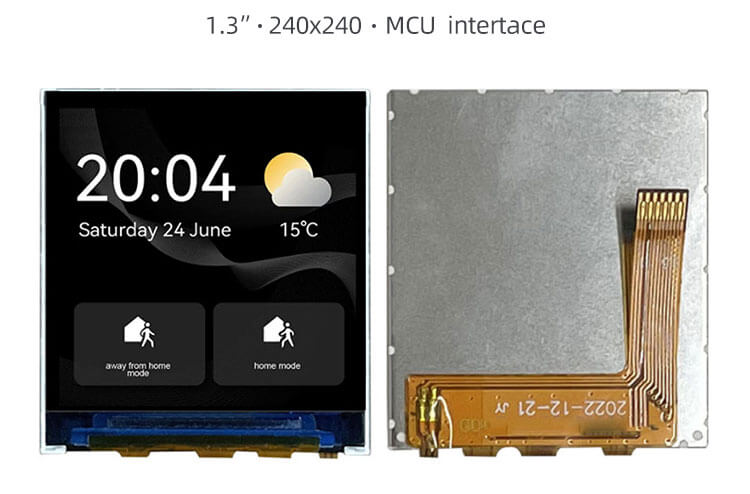

1.3 Inch Square Display 240*240 ST7789V SPI4 TFT LCD Display

Part No.:ET013QV06-T
Size:1.3″ inch
Resolution:240x240
Panel Interface:SPI4
Display mode:Normally Black
Outline Dimension:26.2x29.22x1.5mm
Active Area:23.4x23.4mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:450cd/m2
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.3 Inch 240x240 Square Display Products Description

1.3 Inch 240x240 Square Display Overview
1.3 Inch Square Display 240*240 ST7789V SPI4 TFT LCD Display.

1.3 Inch 240x240 Square Display Application
For industrial & smart home appliances & medical instruments & automotive display.

More Square Displays For Reference

Inch	Resolution	LCM Driver chip	LCM Dimensions	Display area	Interface	Reference brightness
0.85	128*128	ST7735S / GC9107	17.5820.821.5	15.2064*15.2064	SPI	260
1.3	240*240	ST7789V	26.229.221.5	23.4*23.4	MCU 8 BIT	450
	240*240	ST7789V	26.229.221.5	23.4*23.4	MCU 8 BIT	1000
	240*240	ST7789V	26.229.221.5	23.4*23.4	MCU 8 BIT	400
	240*240	ST7789V	26.229.221.5	23.4*23.4	SPI4	450
1.44	128*128	ST7735S	32.36382.6	26.5*26.5	SPI4	300
1.5	128*128	SSD1351	33.8034.001.60	26.855*26.864	8-bit parallel, 3-/4-wire SPI	90
1.54	320*320	ST7796	31.5233.721.65	27.22*27.72	MIPI	700
	320*320	ST7796	31.5233.721.65	27.22*27.72	RGB 16 BIT	700
	240*240	ST7789	31.9235.112.13	27.22*27.72	MCU 8 BIT	900
	240*240	ST7789V	31.5233.721.81	27.22*27.72	SPI4	750
	240*240	ST7789V	31.5234.712.03	27.22*27.72	MCU 8 BIT	800
	240*240	ST7789V	31.9235.111.81	27.22*27.72	RGB 6 BIT	450
1.54	152*152	SSD1681	31.8* 37.3* 1.14	27.512* 27.512	SPI	0
1.54	200x200	SSD1681	31.8 x 37.32 x 0.98	27.00 x 27.00	SPI	0
3.4	480x480	ST7701SN-G5	More choose	More choose	MIPI	550
3.92	320*320	ST7355P	74.8676.732.13	71.14*69.82	SPI/MCU	350
3.95	480*480	ST7701S	81.8*84.95	71.93*71.93	RGB 18 BIT	350
3.95	480*480	ST7701S	83833.06	71.93*71.93	MIPI 2 LANE	350
4	720*720	More choose	778014	71.928*71.928	Type C	700
4.2	720*672	More choose	More choose	More choose	RGB/SPI	More choose
7	720*720	More choose	More choose	More choose	LVDS	More choose
17	1920*1920	More choose	325.01319.3312.2	305.28*305.28	eDP	600
19	1280*1024	H-DMI	423347.737	376.32*301.06	HDMI	720
22	1920*1920	More choose	394.56*394.56	409.56409.5612.6	LVDS	500
28.1	800*800	More choose	504*504	526.8526.828	LVDS	700
33	1920*1920	More choose	596.16*596.16	612.96*612.96	LVDS	420
44.9	1280*1280	More choose	806.4*806.4	829.2829.227.1	LVDS	700
Touch Screens are Available and Optional

1.3 Inch 240x240 Square Display Custom LCD Solutions for Diverse Applications

Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.

1.3 Inch 240x240 Square Display Touch screen,standard type and customization

1.3 Inch 240x240 Square Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.

1.3 Inch 240x240 Square Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
