0.48"-5" LCD Display (1.3")

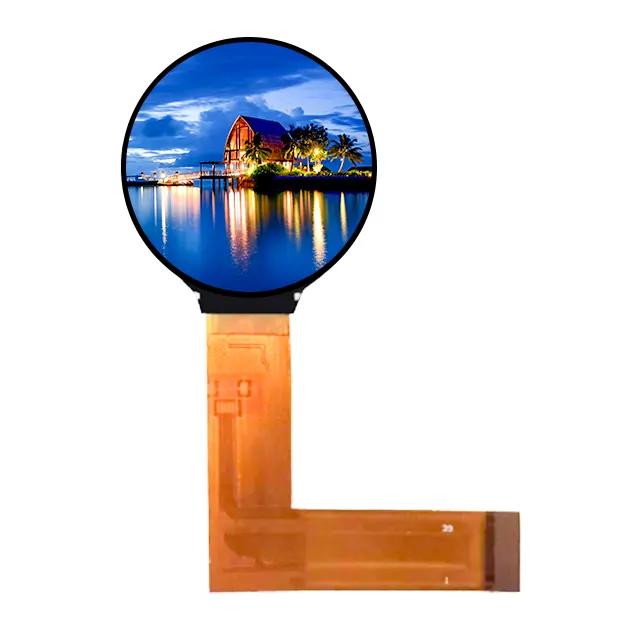

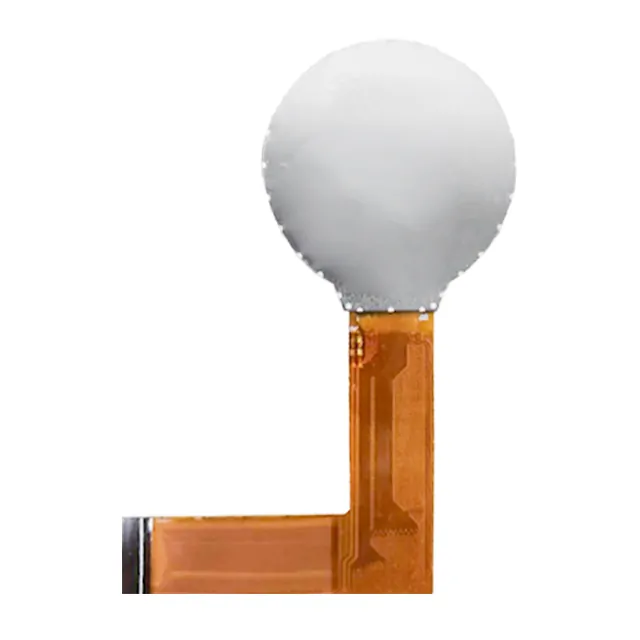

1.3 inch LCD 240x240 3SPI+18RGB Interface With Drive Board Kits For LCD Display

Part No.:ET013QV06-G
Size:1.3″ inch
Resolution:240x240
Panel Interface:MIPI
Display mode:IPS
Outline Dimension:35.6x381.x1.64mm
Active Area:32.4x32.4
Viewing Angle L/R/U/D:All
Brightness（cd/m2）:/
Operation / Storage Temp:/ / /
Touch:no

ET013QV06-G

SPECIFICATIONS
Feature		Specifications
Display spec.	Display Size(Diagonal)	1.3inch
	Resolution(H*V)	240(RGB)x240
	LCD Type	a-Si TFT
	Pixel Configuration	R.G.B Vertical Stripe
	Display Mode	IPS/Transmissive/Nomally Black
	Viewing Direction	All
Mechanical Characteristics	Outline Dimensions(HxVxT)mm	35.6x381.x1.64mm
	Active area	32.4x32.4
	with/without touch screen	without
	Match Connector Type	FH26W-39S-0.3SHW
	Backlight Type	White Led
	Weight	TBD
Electrical Characteeeristics	Iterface	3SPI+18RGB
	Number of color	262k
	Driver IC	GC09A1
