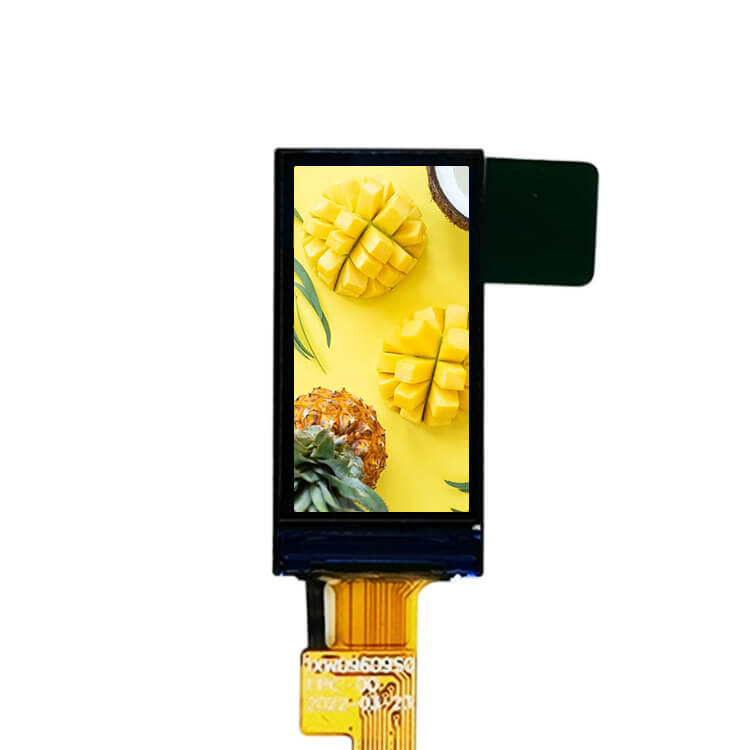

0.96 inch 80x160 TFT LCD Screen SPI 4 BIT Interface Medical Highlight LCD Display

  • Part No.:ET096QE02-T
  • Size:0.96″ inch
  • Resolution:80x160
  • Panel Interface:SPI 4 BIT Interface
  • Display mode:Normally black
  • Outline Dimension:13.5x27.95x1.5mm
  • Active Area:10.8(H)x21.7(V)mm
  • Viewing Angle L/R/U/D:ALL O\\\'CLOCK
  • Brightness（cd/m2）:500Cd/㎡
  • Operation / Storage Temp:-20-70°C / -30-80°C
  • Touch:no
Get a quote

0.96 inch 80x160 TFT LCD Screen
